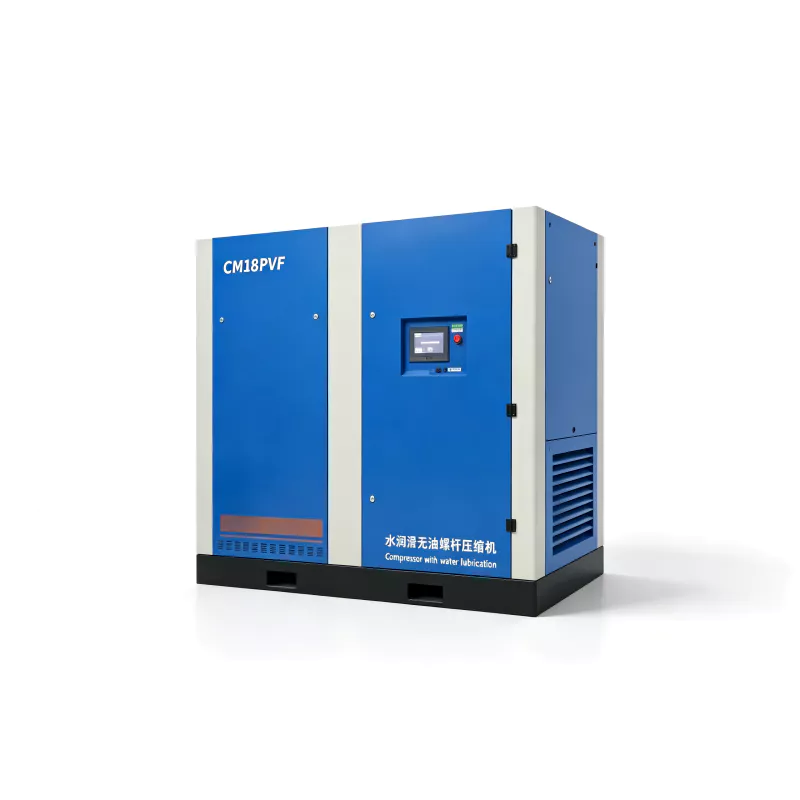

EP-CM18PVF Variable Frequency Water-Lubricated Oil-Free Screw Air Compressor
The EP-CM18PVF is an 18.5 kW permanent magnet VSD water-lubricated oil-free screw compressor delivering 1.24–3.10 m³/min at 0.8–1.25 MPa — engineered for precision spray coating facilities where booth loading varies throughout the shift, cosmetics filling lines with cyclic demand, and chemical processing environments where energy-efficient Class 0 oil-free air must track a continuously variable production rhythm.
EP-CM18PVF | 18.5 kW VSD Water-Lubricated Oil-Free Compressor — Precision Coating Quality, Variable Energy
Precision spray coating facilities face a compressed air quality challenge that has two dimensions. The first is contamination: oil in the spray air causes coating defects that are immediately visible and extremely costly to rectify — fish-eye, cratering, adhesion failure. This is the quality dimension, and it is why water-lubricated structural Class 0 technology is the appropriate compressor choice for any coating application where product quality is the primary concern.
The second dimension is demand variability. A multi-booth coating facility does not have all its spray guns active simultaneously throughout the production shift. Booths cycle through preparation, spraying, flash-off, and product changeover at different times. The aggregate compressed air demand varies continuously — sometimes 70% of peak, sometimes 40%, sometimes 95% during a brief surge when multiple booths spray simultaneously. A fixed-frequency compressor responds to this variation with load/unload cycling, delivering either maximum output or nothing, and causing the pressure fluctuations that affect atomisation quality during the transition between states.
The EP-CM18PVF addresses both dimensions. Its water-lubricated single-screw mechanism provides structural ISO 8573-1 Class 0 oil-free air for contamination-free coating at every speed setting. Its permanent magnet VSD provides continuous output adjustment from 1.24 to 3.10 m³/min to track the variable demand of the coating facility, maintaining ±0.1 MPa pressure stability at the spray gun inlet throughout the production shift. For coating facility managers, the EP-CM18PVF delivers both better coating quality and lower energy cost from the same machine. Contact our engineering team for a system assessment.
Technical Specifications
| Parameter | 0.8 MPa | 1.0 MPa | 1.25 MPa |
|---|---|---|---|
| Motor Power | 18.5 kW / 25 HP (PM VSD) | 18.5 kW / 25 HP (PM VSD) | 18.5 kW / 25 HP (PM VSD) |
| FAD range (m³/min) | 1.24–3.10 | 1.05–2.62 | 0.85–2.13 |
| FAD range (cfm) | 44–109 | 37–93 | 30–75 |
| Noise Level | 65 dB(A) | 65 dB(A) | 65 dB(A) |
| Weight W-cooled | 970 kg | 970 kg | 970 kg |
| Weight A-cooled | 820 kg | 820 kg | 820 kg |
| Drive Type | Permanent magnet VSD | Permanent magnet VSD | Permanent magnet VSD |
| Motor Efficiency | ≥94% (IE4 class) | ≥94% (IE4 class) | ≥94% (IE4 class) |
| Pressure Band Control | ±0.1 MPa | ±0.1 MPa | ±0.1 MPa |
| Air Quality | ISO 8573-1 Class 0 | ISO 8573-1 Class 0 | ISO 8573-1 Class 0 |
| Lubrication | Pure water — zero oil | Pure water — zero oil | Pure water — zero oil |
Spray Coating Pressure Stability: Why ±0.1 MPa Changes the Quality Outcome
The relationship between supply pressure stability and coating film quality is direct and measurable. At a given spray gun setting, the atomisation pattern — droplet size, fan angle, and material flow rate — is calibrated for a specific supply pressure. When supply pressure varies by ±2–3 bar across the compressor's load/unload cycle, these parameters vary proportionally, producing film thickness variation, fan pattern inconsistency, and atomisation quality differences between the high-pressure and low-pressure points of the cycle.
In high-value coating applications — automotive components, furniture, industrial equipment — these variations translate to visible quality defects and increased rework rates. The EP-CM18PVF's ±0.1 MPa VSD pressure control eliminates this variation source entirely. Supply pressure at the spray gun inlet is stable throughout the shift; the atomisation parameters that were calibrated at commissioning remain valid throughout the production run; and the film thickness and finish quality that was achieved at the start of the shift is reproduced at the end of the shift.
| Cost Category | Fixed-Frequency Model | Variable Frequency (VSD) Model |
|---|---|---|
| Energy (10-year share) | ~80% of total ownership cost | ~45% — 35% electricity saving |
| Purchase cost | Lower | Slightly higher (VSD premium) |
| Startup current | High inrush — grid stress | Soft-start — zero inrush |
| Partial-load efficiency | Full power even at 40% demand | Speed reduces proportionally |
| Pressure band control | ±2–3 bar (on/off cycling) | ±0.1 MPa continuous |
| Payback on VSD premium | — | Typically 12–24 months |
Key Features
3.10 m³/min Variable — Full Booth Coverage
At 1.24–3.10 m³/min variable FAD at 0.8 MPa, the EP-CM18PVF covers multi-booth coating facilities where the number of simultaneously active booths varies throughout the shift. Output tracks the actual active-booth count in real time, eliminating the pressure variation that causes coating quality inconsistency during the load/unload transitions of fixed-frequency compressors.
±0.1 MPa Pressure Stability at the Gun
VSD continuous speed adjustment maintains supply pressure within ±0.1 MPa of the setpoint throughout the shift — regardless of how many booths are active, how frequently they cycle, or what phase of the spray-flash-changeover sequence each booth is in. Atomisation parameters calibrated at commissioning remain valid throughout the production shift.
Structural Class 0 — No Fish-Eye Risk
Water lubrication is the only lubrication medium in the compression chamber. No oil can appear in the spray air under any operating condition — including high-demand periods when a fixed-frequency compressor might bypass a coalescing filter under pressure differential stress. The structural Class 0 guarantee is independent of operating speed, demand level, or maintenance state.
IE4 Permanent Magnet Efficiency Across Speed Range
The permanent magnet motor maintains ≥94% efficiency from minimum to maximum speed — delivering the lowest specific power consumption available at 18.5 kW in water-lubricated oil-free technology. During low-demand periods between active spray cycles, the compressor operates at reduced speed and reduced efficiency-adjusted power consumption rather than full power venting.
65 dB(A) — Coating Facility Compatible
At 65 dB(A), the EP-CM18PVF operates well below the spray coating facility ambient noise level in most production environments. Installation within the coating facility utility area without specialist acoustic treatment is practical in most building configurations.
Cosmetics and Personal Care Line Compatibility
The all-stainless-steel internal air path, structural Class 0 certification, zero oil condensate, and ±0.1 MPa pressure stability are all directly relevant to cosmetics filling line quality requirements — contamination-free product contact air, consistent fill pressure for accurate dosing, and environmental compliance simplification from zero oil waste generation.
Customer Case Studies
Italy — Industrial Furniture Coating Specialist
Industry: Industrial Coating | Application: Variable-demand oil-free spray air for four coating booths producing office and contract furniture
"Our four booths rarely run simultaneously — they cycle independently through spray, flash-off, and loading phases. Our previous fixed-frequency compressor spent much of the shift at full load with little demand, wasting energy and causing pressure cycling that our spray operators noticed as finish inconsistency. The EP-CM18PVF tracks our actual booth activity. Energy saving measured at 27% annually. Fish-eye defect rate attributable to air quality: zero since installation."
★★★★★
France — Premium Cosmetics Manufacturer
Industry: Cosmetics | Application: Oil-free compressed air for precision filling, cap application, and labelling on premium skincare and fragrance lines
"Premium cosmetics production requires both oil-free compressed air and very stable fill pressures — pressure variation affects fill accuracy at the 0.1ml level on our fragrance lines. The EP-CM18PVF provides both: structural Class 0 oil-free air from water lubrication and ±0.1 MPa stability from VSD control. Our fill accuracy measurement has improved since installation, and our compressed air electricity consumption is 25% lower than with the fixed-frequency unit it replaced."
★★★★★
Poland — Automotive Plastic Components Coating Plant
Industry: Automotive Manufacturing | Application: HVLP spray coating of ABS plastic exterior trim components with variable daily production scheduling
"Our production schedule changes weekly — different component mixes with different line speeds and different numbers of active booths. A fixed-frequency compressor cannot economically handle this variability. The EP-CM18PVF adjusts to whatever the production schedule demands. In months with lighter scheduling, our compressor electricity drops proportionally. Annual saving: 24% versus our previous fixed-frequency installation. Coating quality on our plastic trim parts has also improved — the spray operators notice the stable pressure immediately."
★★★★★
Frequently Asked Questions
Stable Coating Quality. Variable Energy Cost. One Machine.
Furniture coaters, cosmetics producers, and automotive component coating plants in Italy, France, Poland, and 50+ markets choose the EP-CM18PVF for the combination of structural Class 0 oil-free air and VSD energy efficiency that variable-demand coating operations require. Calculate your facility's energy saving with our engineering team.
